Circular Polarization type hat 800-1620MHz 3.5dBi omin fiberglass antenna for anti drone signal device
This circular polarization type hat antenna frequency band 800-1620Mhz,the gain is 3.5dBi.The bottom has set 5 S-end connector the connector using copper material which can transmit signal fluency.The polarization is virtical method ,360° horizontal beamwidth .It is a omin antenna working range .
product sepcification
| █Electrical Specifications |
| FrequencyRange | 800-1620MHz |
| Gain(dBi) | 3.5±0.5dBi |
| VSWR | ≤2 |
| Polarization | virtical |

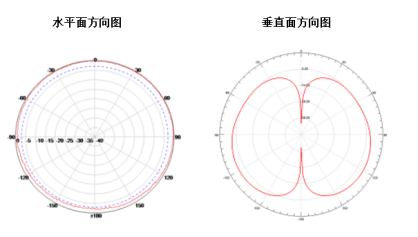

| Horizontal Beamwidth(0º) Vertical Beamwidth(0º) | 360º 55±5º |
| ovality(dB) | ≤±2dB |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 50W |
| Inpur connector type | Sma-K |
| █Mechanical Specifications | |
| Dimensionsmm(Height/Width/Depth) | ɸ115*140mm |
| Packing size(mm) | 470*350*220mm(20PCS) |
| Antenna weight(kg) | 0.35KG |
| Rated Wind Velocity(m/s) | 31m/s |
| Operational Humidity(％) | 10- 95 |
| Radome Color | Black |
| Radome material | ABS |
| Operating temperature(ºC) | -40～55 º |
| Installution Method | Machine mount |
Product advantages
- Direct sales by factory
- Light weight 186g
- Easy to install and can adjust any angle
- Aluminium material waterproof and high efficiency signal transfer
- Support customized frequency band
FAQ
Who we are?
Shen zhen Texin electronics co.,Ltd is a electronic communication type company which developed 2014,it has over 10 years in this field ,we sales WIFI signal reapeter and anti drone jammer ,most products can be customized .
How many assemblies you have in your factory ?
TeXin factory has over 9 assemblies in our over 5000sqm 2 floor factory in Long area, Shenzhen city.
Do you have the engineer for the technical support when you are making the after sales service ?
TeXin engineer team can directly offer the customers with the techinical support online anytime customer need it.
How can i be a your distributor in our own country ?
For the TeXin distribution authorization,we can definitely offer it for some customer after the details negotiation, it depends on the real situation of each side.
